Front strut mount studs stripped

[manofwar]

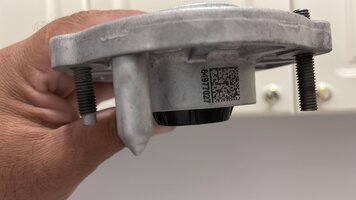

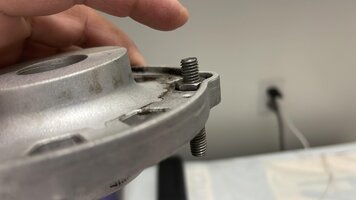

Hi, I'm new to the forum. I installed the lowering collar by Paragon last night and stripped the top shock mount bolts. I accidentally readjusted the torque wrench when I was torqueing them down to 22 ft lbs and two of the bolts broke. None of the dealerships in Canada has it and it will take up to two weeks to be shipped here from Michigan. What are my options to repair this?



[Murray20c8]

Hi, welcome to the forum. Sorry I can't help, but sorry to hear about it. Man that's tough. Sounds like something I would do..



[Afterimage]

On the other end of the good stud is it tacked on the strut mount or is it pressed in? If it's pressed in thread 2 nuts onto the good stud so the top nut is flush with the stud and hammer it out.

Take the good stud to a nut/bolt place and see if they can match it up, even if they don't have the right thread pitch ALA it's the same length and diameter you can install them and get it back onto the car (get new nuts to go with the new studs if different thread pitch).

BTW, 22 ft./lbs is not a lot of torque. On that fastener it's basically hand tight and with a socket/ratchet combo turn almost a 1/4 turn and you are good. No need to reef the crap out of it with a torque wrench.



[manofwar]

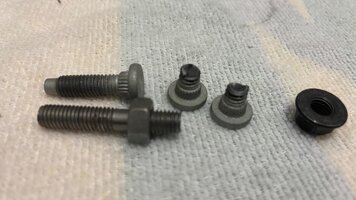

Thanks for the replies. I got the broken studs out as well as the good one. Im thinking on using 3 exhaust manifold studs and grinding the heads flush to the aluminum plate then tacking the tops of the studs to the aluminum housing. My question is will the tack weld hold to stainless and aluminum.



[Murray20c8]

Wow, I'm no expert but I doubt you can bond dissimilar metals.
I'd think you'd be better off even getting a machine shop to create studs for you.



[harshadt]

Hi, I'm new to the forum. I installed the lowering collar by Paragon last night and stripped the top shock mount bolts. I accidentally readjusted the torque wrench when I was torqueing them down to 22 ft lbs and two of the bolts broke. None of the dealerships in Canada has it and it will take up to two weeks to be shipped here from Michigan. What are my options to repair this?View attachment 99895

wait for the new ones from Michigan. And order a couple extra



[Roughrider]

There are a number of fastening centres around, they should have something to match what you have.



[manofwar]

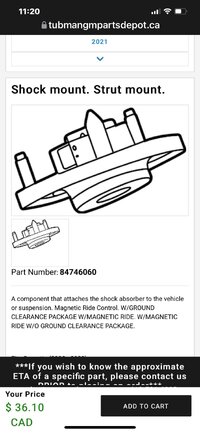

I called a GM dealership in Buffalo Niagara falls yesterday and had the parts guy order the shock mount from Michigan he said it should arrive today at 12pm. Which means I have to cross the boarder to pick it up.



[link9]

I always replace the OEM bolts and the stud with the ( ARP ) never use OEM . .. replace with ARP stud and torque them same as OEM ...



[manofwar]

These guys over the border at PADDOCK Chevrolet 3232 Delaware Avenue NY 716-876 0945 are on Q with next day pick up. By 10am today my part arrived from Michigan. After a quick drive over and back, I'm up and running again. Thanks for the help guys..



[Fast Boat Guy]

That’s great!
Now let’s see some pictures of the newly lowered C8!
I would like to see it.
Do you have Mag Ride and/or front lift?



[manofwar]

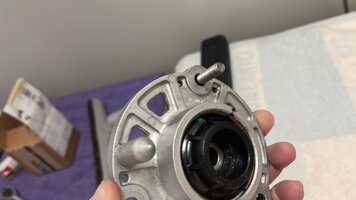

Here are some pictures of the Paragon front lowering collar........Am I suppose to bleed the front lift ?? It works fine after installing the lines back to it.



[manofwar]

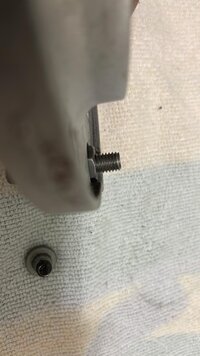

I cant torque this bolt or snug tighten it, it just spins.



[Fast Boat Guy]

It looks great!
I like it.
