Hello I recently had my dash cluster rebuilt over the winter but I'm still having issues. Without the car running, the voltage indicator will start to spike and once it hits 18 Volts(car is not running just have key in ignition) it will shut down. At times it looks like it want to power up but only jiberish comes up on screen. They guy that rebuilt it says the cluster is fine and that I may have another issue connecting into the cluster. I re-routed the main grounds as per batte.com but I'm still having issues. Does anyone out there know a good automotive electrical mechanic in the Toronto area I can take it to to figure this out?

Any help would be greatly appreciated.

Thanks
Sam


Live Wire

Casual User
Mar 18, 2020
34
31
Awards
1
VetteCoins
844
Car
C4 Corvette 1985 4+3
Province
ON
Your dash display power supply is shot. Here's the clue: Your voltage indicator function compares the 12 volts provided by the power supply inside the display, to the battery voltage from the car itself. Normally, it will see 1 or 2 volts above, and assigns a value of 12 + 1 (or 2), and displays 13. However, if the voltage coming out of the power supply is low, say, 7, then it sees 5 volts above the power supply voltage that it thinks is 12, but is really 7. It then displays 12 + 5 = 17 volts. Between that and the occasional jibberish display, it's a dead giveaway that the power supply is failing. It actually sounds like a capacitor is slowly failing.
All you need to do is order a new power supply and solder it in. Batee.com provides two ways to do this: One way is to buy the parts replacement kit and replace individual pieces on the power supply board. This is cheap, but unless you are an electronics whiz, don't try it. You can buy a full power supply on a board, and it comes with a ribbon cable to solder. This is a bit more expensive, but totally worth the ease of repairing. If you don't think you're up to some soldering, it shouldn't be too tough to find a neighbourhood kid that likes electronics, or someone with some soldering experience to do this.
Have fun!


SamNardi

I'm New Here
Aug 24, 2021
8
3
Awards
1
VetteCoins
137
Car
87 Corvette
Province
ON
Hi just had installed a new power supply from Batee.com. cluster seems to work for a minute or two but then the 4 bulbs that illuminate the panel will flicker on and off. While the 4 bulbs are off, all the tell tale gauges will continue to work but hard to see without the backlight. I already re routed the main ground wires to a new clean ground. Was wondering if it could be a bad ground from the ground strap to the battery. Attached is a video of the issue im having.


SamNardi

I'm New Here
Aug 24, 2021
8
3
Awards
1
VetteCoins
137
Car
87 Corvette
Province
ON
Hi just had installed a new power supply from Batee.com. cluster seems to work for a minute or two but then the 4 bulbs that illuminate the panel will flicker on and off. While the 4 bulbs are off, all the tell tale gauges will continue to work but hard to see without the backlight. I already re routed the main ground wires to a new clean ground. Was wondering if it could be a bad ground from the ground strap to the battery. Attached is a video of the issue im having.


Live Wire

Casual User
Mar 18, 2020
34
31
Awards
1
VetteCoins
844
Car
C4 Corvette 1985 4+3
Province
ON
I'm thinking you may have to open the display back up again. There are two boards inside that have a multi-conductor pin connector between them. The first pin is the ground for the board which houses the light bulbs. If you look at that ground pin, you'll probably see it is discoloured from high heat. The pin socket gets a bit weak and heats up. I fixed mine by soldering a bypass wire beside the pin on one board, and another beside the socket. At the ends of these wires, I crimped on an insulated spade connector and socket, which enables the boards to be separated next time you need to get into the display. This should fix up the light problem. Good luck!

  • Like
Reactions: Rruuff Day

SamNardi

I'm New Here
Aug 24, 2021
8
3
Awards
1
VetteCoins
137
Car
87 Corvette
Province
ON
oh no I was hoping I would not have to open it back up. Bryan Thompson from batee.com who installed the Power Supply checked it and said there was no discoloring on the pins. By chance would you have a diagram of the pins so I can make sure I'm looking at the right one.

Thanks for your help once again


SamNardi

I'm New Here
Aug 24, 2021
8
3
Awards
1
VetteCoins
137
Car
87 Corvette
Province
ON
I'm thinking you may have to open the display back up again. There are two boards inside that have a multi-conductor pin connector between them. The first pin is the ground for the board which houses the light bulbs. If you look at that ground pin, you'll probably see it is discoloured from high heat. The pin socket gets a bit weak and heats up. I fixed mine by soldering a bypass wire beside the pin on one board, and another beside the socket. At the ends of these wires, I crimped on an insulated spade connector and socket, which enables the boards to be separated next time you need to get into the display. This should fix up the light problem. Good luck!
Ok i follow what you did but have a few questions
1) which pin is the ground to the lights on the bottom board. Is it the first pin closer to the power supply?
2) when you soddered the by pass wire from the pin to the socket, why did you use a connector and how does it enable you to separate the boards? Aren't the other 11 pins still connecting the 2 board together?
I appreciate your feedback
Sam


Live Wire

Casual User
Mar 18, 2020
34
31
Awards
1
VetteCoins
844
Car
C4 Corvette 1985 4+3
Province
ON

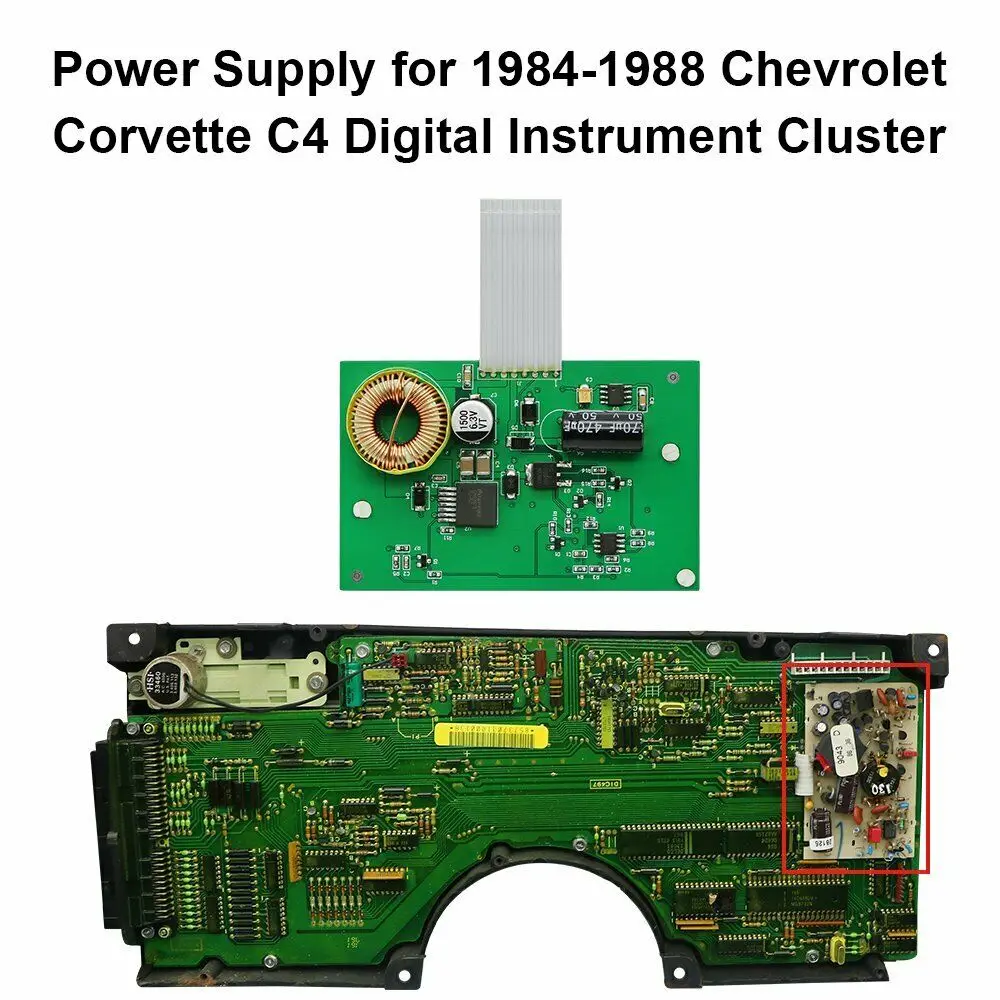

On the wires I soldered to the boards, on the white connector next to the power supply, I put the wires together using a male and female insulated spade connector. This way, when the boards have to be separated, it's easy to just separate the wires. Look at the picture in the attached ad. Above the power supply (circled in red) is the white multi-pin connector. The ground is the pin on the end, but I just can't remember which end. Follow the PCB track from one of them and it goes to each of the light sockets for the ground. On mine, only the ground wire had overheated. The other 11 pins were ok.

  • Informative
Reactions: Rruuff Day
